2007-01-15-1DMkII-HN7J0607

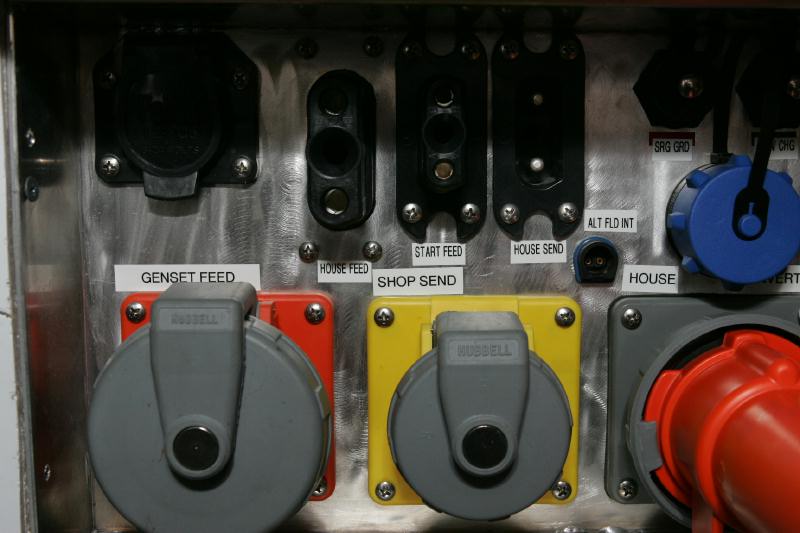

Hubbell IP67 120VAC connectors. Upper left is an RV chassis lighting connector that is not used. Two pole DC connectors are Anderson Power Products PowerMod HP connectors used for high amp DC. House feed (house battery bank feed) is HPB 400 amp, next two are HPA 200 amp. ALT FLD INT (Alternator Field Interupt) is a Hypertronics connector. The ALT FLD INT circuit is used by the battery switch to stop output from the dedicated house battery bank Balmar alternator if the battery switch is moved from house to start or off. Otherwise the alternator would be damaged if the switch was moved while the motor was running.
